Free Stall Sand Rakes
BROWSE OUR MODELS

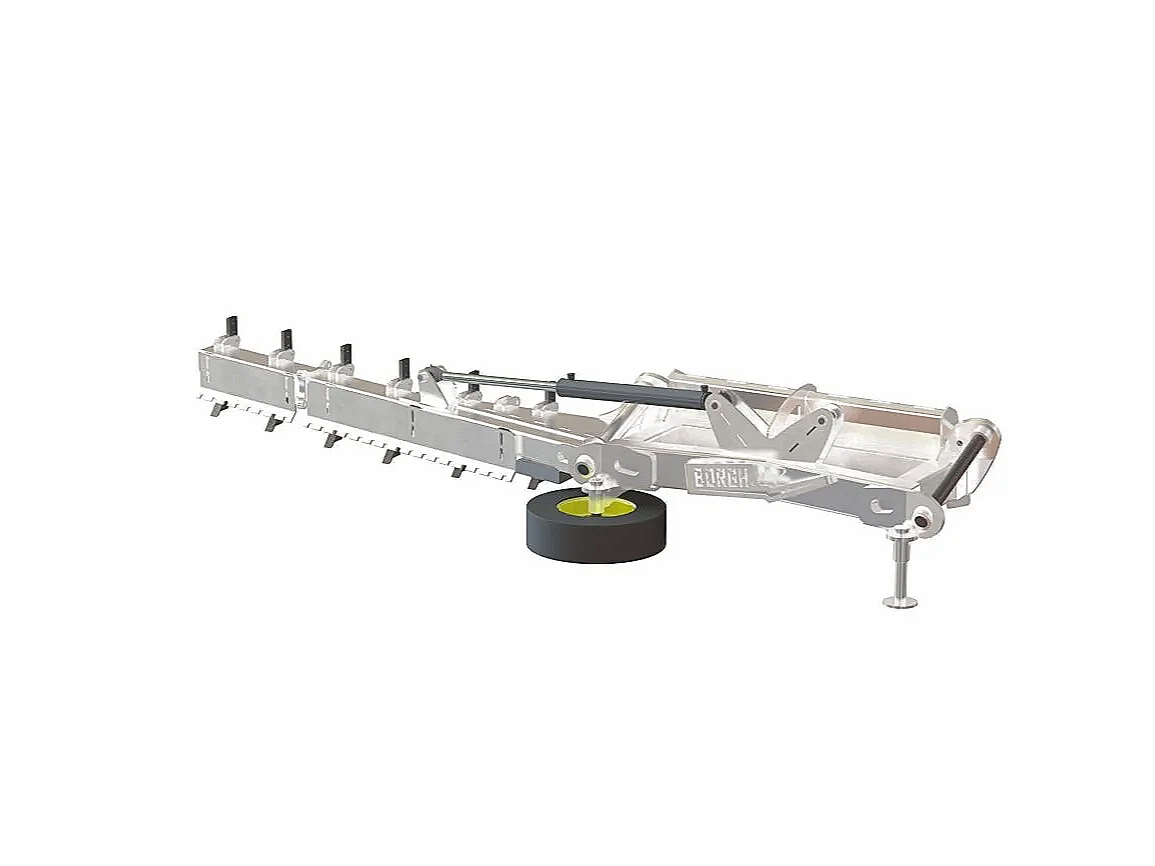

Wing Back
SSR 2.0
Fold-up Width79.3" (202 cm)
Fold-up Height82.2" (209 cm)
Height w/ Extension108.6" (276 cm)
Max Downward Angle2.3°
A slant back wing that sweeps excess sand to the front of the stall in one pass. The 79.3" fold-up fits between dividers and through door openings. Left or right wing, with shank/scraper or low-profile extensions.
View SSR 2.0

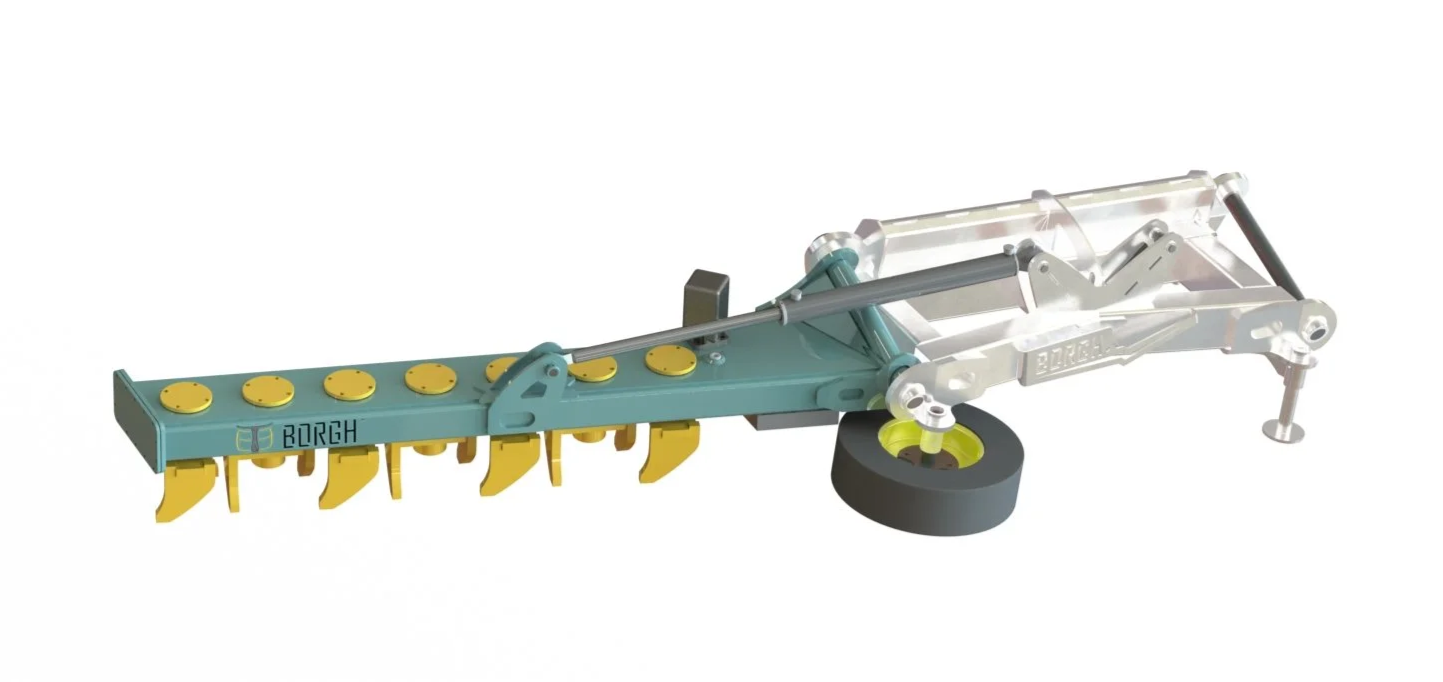

Rotary
SSRR 2.0
Rotors6 or 7
Alley Edge to Wing End63" or 73"
Transport Height91" or 101"
Weight per Wing580 or 683 lbs
Rotating tines on large spur gears and oil bath tapered bearings break up hard-packed bedding and redistribute the sand. Choose 6 or 7 rotors, with left, right or both wings.
View SSRR 2.0
BORGH OUTLASTS WHILE OTHERS BREAK DOWN
Sand stalls make for great bedding, but they are hard on equipment. Most rakes aren’t built to stand up to the constant abrasion and beating that comes with bedding management. Tube frames, powder coating, bolt-on teeth, and lack of curb protection all significantly reduce the lifetime of your equipment.
That’s why we built our SSR & SSRR free stall sand rake models on a heavy, galvanized wing frame, with a stainless scraper, hardened shanks, and a curb wheel or guide that keeps the wing on the stall edge. Built with Canadian steel, made in Alberta.
Built Heavy, Galvanized
Every steel component is galvanized, not just painted. Heavy duty mono boom wings on the SSR 2.0 and a large main pivot king pin on the SSRR 2.0 carry the load. The two-wing SSR 2.0 weighs 1,462 lbs.
Fits Your Barn
A 79.3" fold-up and slim mono boom wings slip between stall dividers and through door openings. Left, right or both wings to match your layout.
Follows the Curb
A solid rubber wheel on the SSR 2.0 or a 2" thick UHMW guide on the SSRR 2.0 rides the stall edge. The SSRR handles curbs up to 10" thick.
Easy to Keep Running
Adjust shank height, scraper height and pitch. Grease zerks on the king pins and cylinder ends. Break-away bolts take the hit instead of the shank.
BUILT WITH CANADIAN STEEL, MADE IN ALBERTA
QUALITY WE STAMP OUR NAME ON
Every BORGH sand stall rake is designed from real farm experience and backed by a 24-month warranty against manufacturing defects on every model.
